Republic Battery

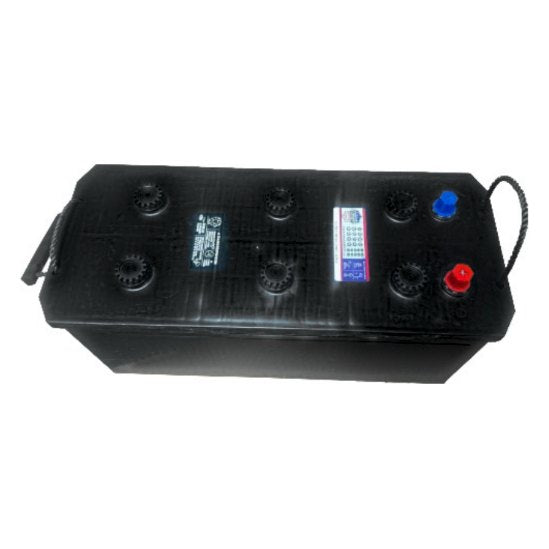

D5-1350 | Group D5 12V Commercial Heavy-Duty Battery, 1,350 CCA
D5-1350 | Group D5 12V Commercial Heavy-Duty Battery, 1,350 CCA
Couldn't load pickup availability
Heavy-duty commercial battery for construction and heavy equipment, trucks, generators and fleet service.
Maintainable battery: removable vent caps for checking electrolyte and topping up with distilled water.
Specifications
| Part # | D5-1350 |
| BCI group size | D5 |
| Voltage | 12V |
| Cold cranking amps (0°F) | 1,350 |
| Cranking amps (32°F) | 1,690 |
| Capacity (20-hr rate) | 190 Ah |
| Battery type | Conventional wet cell |
| Terminal | SAE automotive post (Type A) |
| Layout | Republic layout 5: terminals at one end, positive at front (viewed from label side) |
| Length | 20.25 in (513 mm) |
| Width | 8.78 in (223 mm) |
| Case height | 7.68 in (195 mm) |
| Overall height | 8.78 in (223 mm) |
| Weight (approx.) | 104.7 lb (47.5 kg) |
| Warranty | 12-month free replacement |
Applications
- Construction & heavy equipment
- Generators & standby power
- Heavy trucks
- Tractors & agriculture
For commercial & wholesale buyers
| Units per pallet | 24 |
| Units per layer | 8 |
| DOT / hazmat | UN2794, Batteries, wet, filled with acid, Class 8 corrosive |
Commercial account and reseller pricing available. Apply for a business account or call (713) 645-2141. Spec sheet and Safety Data Sheet available on request.
Core charge
A $50 core charge applies when an old battery is not returned. Texas battery fee and sales tax are added at checkout.
Specifications
| Part number | D5-1350 |
|---|---|
| BCI group size | D5 |
| Type | Conventional Wet Cell |
| Voltage | 12V |
| Cold cranking amps (CCA) | 1350 |
| Cranking amps (CA) | 1690 |
| Capacity (Ah @ 20 hr) | 190 |
| Dimensions (L x W x H) | 20.25 x 8.78 x 7.68 in (8.78 in to top of post) |
| Dimensions, metric | 513 x 223 x 195 mm (223 mm total) |
| Weight | 105 lb (47.5 kg) |
| Terminal | Type A |
| Terminal layout | Layout 5 |
| Pallet quantity | 24 (8 per layer) |
| Shipping class | UN2794 - Class 8 Corrosive - wet filled |
| Warranty | 12 Month Free Replacement |
| Replaces / cross-reference | TY26783B, M18, 629SHD, 680108100 |
Ratings per BCI test standards. Dimensions are case size; total height includes terminals. Need a full data sheet or MSDS? Catalogs & spec sheets or call (713) 645-2141.
