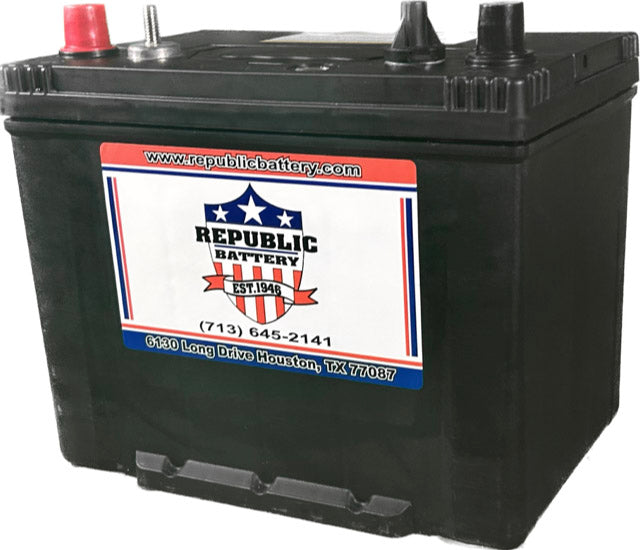

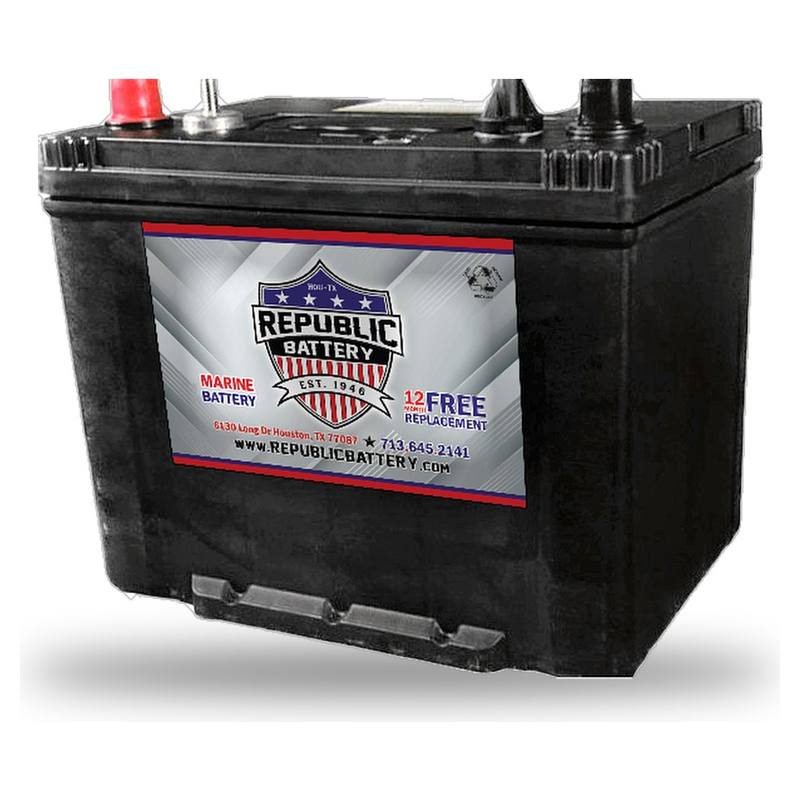

24M-1 | Group M24 12V Marine Cranking Battery, 520 CCA
24M-1 | Group M24 12V Marine Cranking Battery, 520 CCA
Couldn't load pickup availability
Maintenance-free marine cranking battery for dependable engine starts on outboards, inboards and work boats.
✓ Marine Approved: maintenance-free construction suitable for marine and vessel service.
Specifications
| Part # | 24M-1 |
| BCI group size | M24 |
| Voltage | 12V |
| Cold cranking amps (0°F) | 520 |
| Cranking amps (32°F) | 625 |
| Reserve capacity (25 A) | 90 min |
| Capacity (20-hr rate) | 60 Ah |
| Battery type | Maintenance-free wet cell |
| Marine type | Cranking |
| Terminal | Marine dual: SAE post + 5/16" threaded stud |
| Layout | Republic layout 2: positive on the left (viewed from label side) |
| Length | 10.25 in (259 mm) |
| Width | 6.75 in (173 mm) |
| Case height | 8 in (202 mm) |
| Overall height | 8.75 in (223 mm) |
| Weight (approx.) | 30 lb (13.6 kg) |
| Warranty | 12-month free replacement |
Applications
- Engine starting
- Outboards & inboards
- Work boats & vessels
- Generators on board
For commercial & wholesale buyers
| Units per pallet | 110 |
| Units per layer | 24 |
| DOT / hazmat | UN2794, Batteries, wet, filled with acid, Class 8 corrosive |
| Country of origin | Philippines |
Commercial account and reseller pricing available. Apply for a business account or call (713) 645-2141. Spec sheet and Safety Data Sheet available on request.
Core charge
A $20 core charge applies when an old battery is not returned. Texas battery fee and sales tax are added at checkout.
Specifications
| Part number | 24M-1 |
|---|---|
| BCI group size | M24 |
| Type | Maintenance Free Wet Cell |
| Voltage | 12V |
| Cold cranking amps (CCA) | 520 |
| Cranking amps (CA) | 625 |
| Reserve capacity (min) | 90 |
| Capacity (Ah @ 20 hr) | 60 |
| Dimensions (L x W x H) | 10.25 x 6.75 x 8.0 in (8.75 in to top of post) |
| Dimensions, metric | 259 x 173 x 202 mm (223 mm total) |
| Weight | 30 lb (13.6 kg) |
| Terminal | Marine (dual) |
| Terminal layout | Layout 2 |
| Pallet quantity | 110 (24 per layer) |
| Country of origin | Philippines |
| Shipping class | UN2794 - Class 8 Corrosive - wet filled |
| Warranty | 12 Month Free Replacement |
Ratings per BCI test standards. Dimensions are case size; total height includes terminals. Need a full data sheet or MSDS? Catalogs & spec sheets or call (713) 645-2141.
